Lincoln Nautilus: Exterior Lighting / Rear Lamp Fade Control Module. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Electrical / Lighting / Exterior Lighting / Rear Lamp Fade Control Module. Removal and Installation


  1. Remove the LH loadspace interior trim panel.
    Refer to: Loadspace Trim Panel (501-05) .

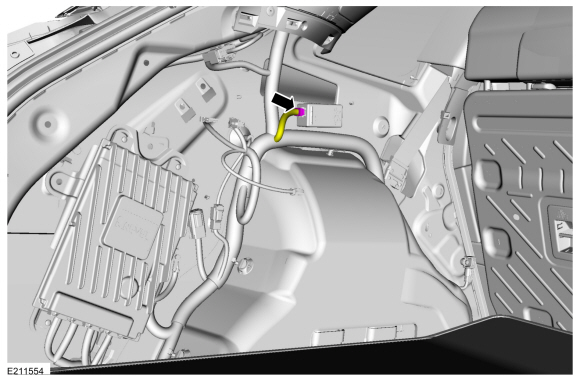

  1. Disconnect the rear lamp fade control module electrical connector.
  1. Release the pin type retainers and remove the rear lamp fade control module.


  1. To install, reverse the removal procedure.

    Rear Lamp Assembly. Removal and Installation

    Removal NOTE: This procedure can be used for all locations of the component. Remove the screw cover. Remove the screw and position the rear lamp assembly...

    Reversing Lamp. Removal and Installation

    Removal Remove the liftgate interior trim panel. Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
