Lincoln Nautilus: Handles, Locks, Latches and Entry Systems / Door Lock Cylinder. Removal and Installation
Removal
-
Remove the exterior front door handle.
Refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
-

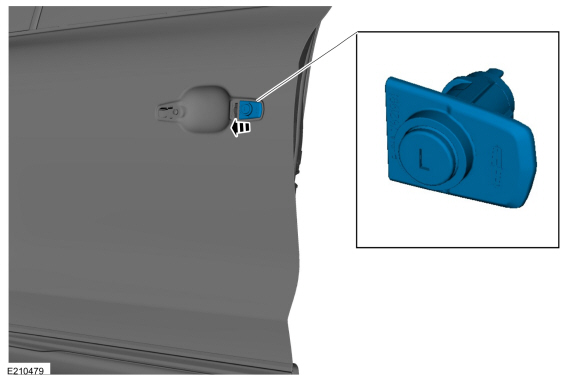

Remove the door lock cylinder.
Installation
-
To install, reverse the removal procedure.
