Lincoln Nautilus: Front Seats / Front Seat Backrest Blower Motor. Removal and Installation

Lincoln Nautilus 2018-2023 Service Manual / Body and Paint / Body and Paint / Front Seats / Front Seat Backrest Blower Motor. Removal and Installation

Removal

NOTE: Driver seat shown, passenger seat similar.

  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering (501-20B) .

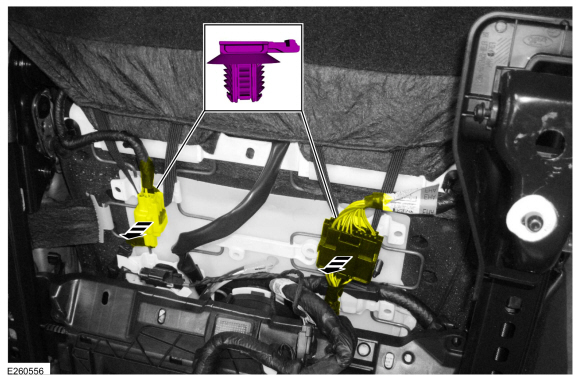

  1. Detach the electrical connector retainers and position the wiring harnesses aside.

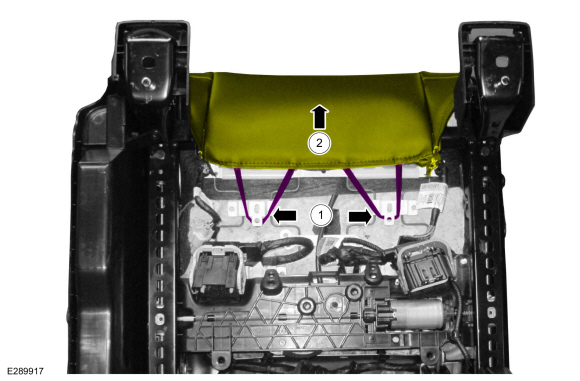

    1. Detach the backrest cover straps.

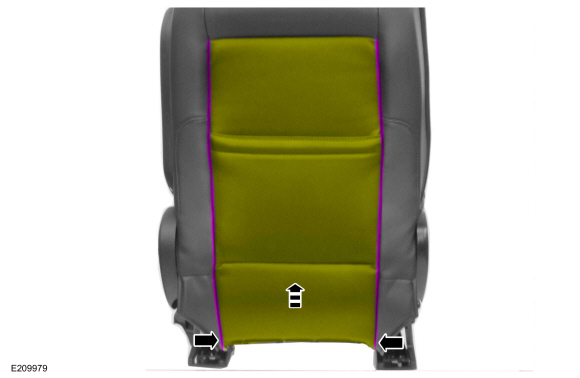

    1. Position the backrest cover upward.
  1. Release the backrest cover lower J-clips.
  1. NOTICE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

    Both sides.
    Unzip the seat backrest cover and position the cover upward.
  1. NOTE: Components may be removed for clarity.

    1. Detach and disconnect the electrical connector.
    1. Detach the retainer and position the wiring harness aside.
    1. Detach the front seat backrest blower motor strap J-hooks.
  1. NOTE: Components may be removed for clarity.

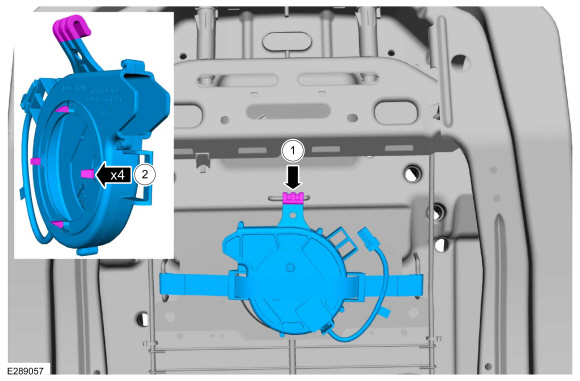

    Remove the front seat backrest blower motor.
    1. Detach the J-hook.
    1. Detach the retaining clips.

Installation

  1. To install, reverse the removal procedure.
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Repowering (501-20B) .
