Lincoln Nautilus: Handles, Locks, Latches and Entry Systems / Remote Keyless Entry (RKE) Exterior Sounder. Removal and Installation
Removal
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-

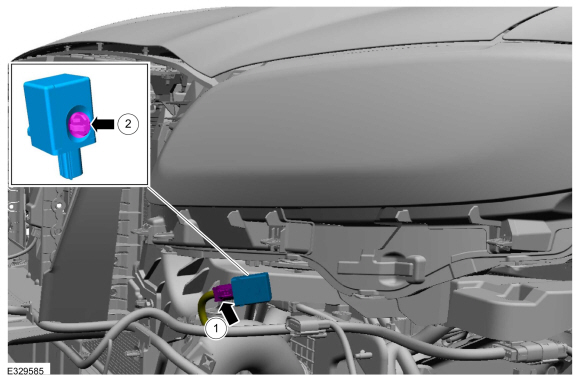

Remove RKE exterior sounder.
-
Disconnect the RKE exterior sounder electrical connector.
-
Release the pin-type retainer and remove RKE exterior sounder.
-
Disconnect the RKE exterior sounder electrical connector.
.jpg) |
Installation
-
To install, reverse the removal procedure.
