Lincoln Nautilus: Interior Trim and Ornamentation / Steering Column Shrouds. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Interior Trim and Ornamentation / Steering Column Shrouds. Removal and Installation

Removal

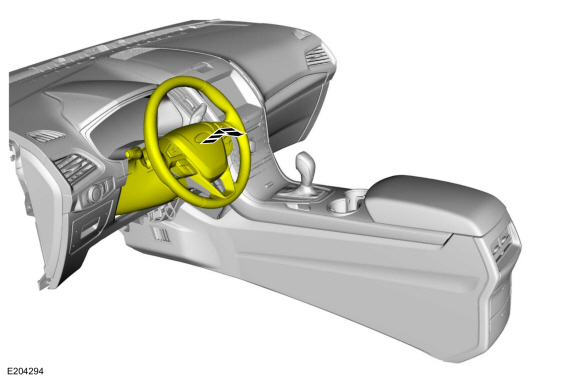

  1. Fully extend and lower the steering column.

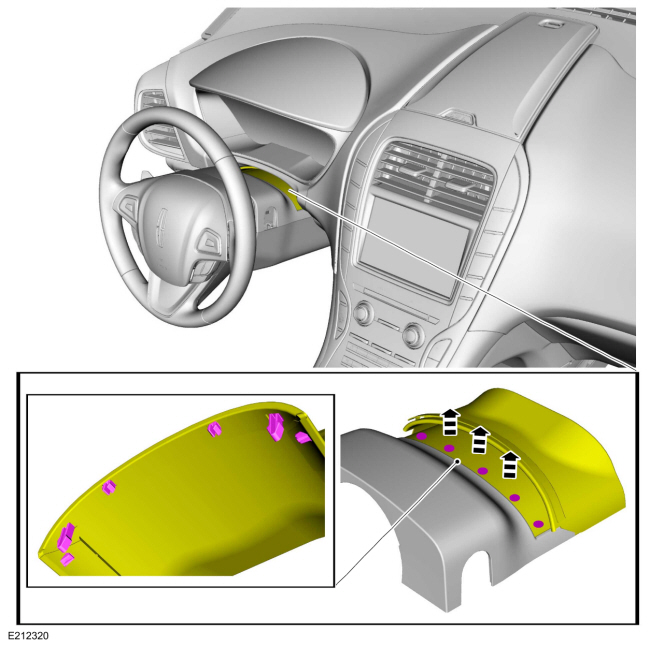

  1. Release the upper tabs and disconnect the gap hider from the upper steering column shroud.

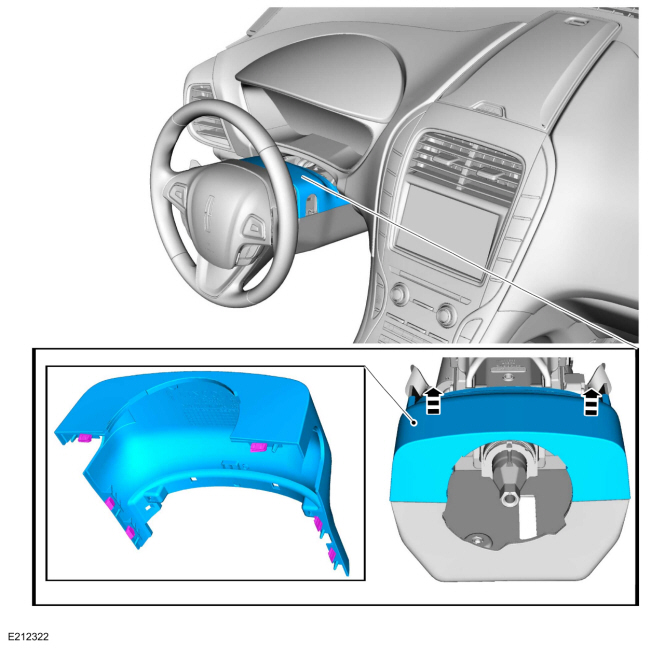

  1. Release the tabs and remove the upper steering column shroud.

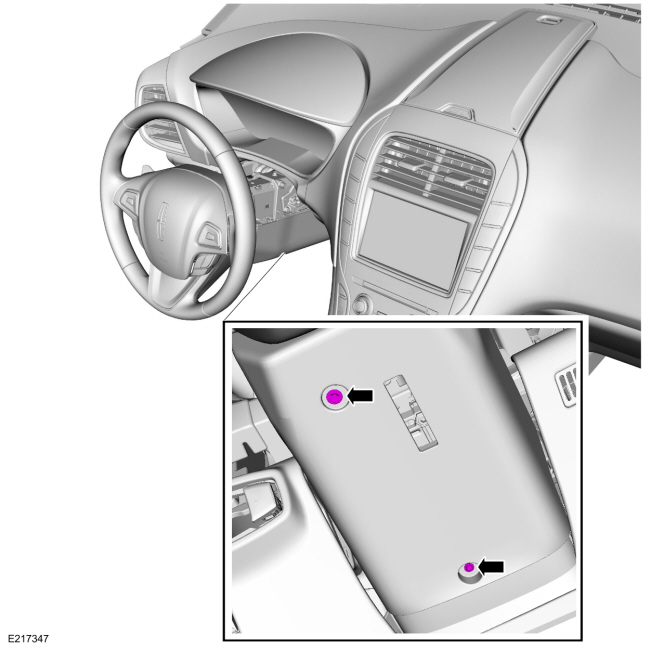

  1. Remove the lower steering column shroud retainers.

  1. Remove the lower steering column shroud.

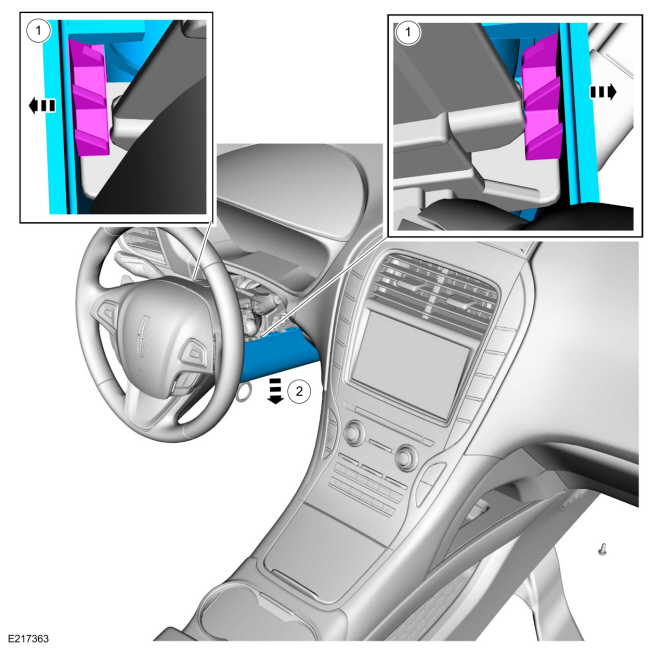

    1. Release the tabs.
    1. Remove the lower steering column shroud.

Installation

  1. To install, reverse the removal procedure.
